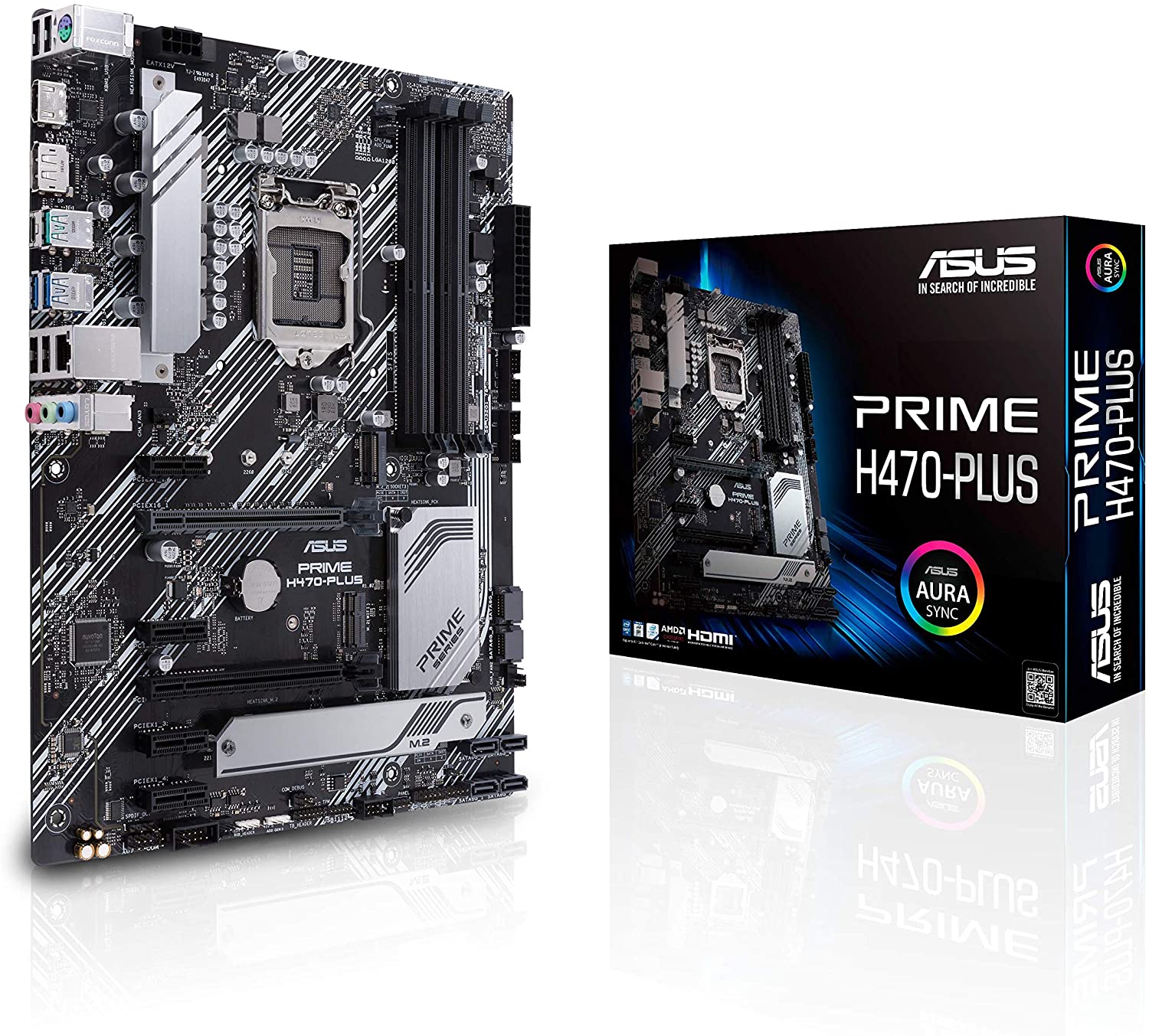

Asus Prime H470-Plus/CSM LGA 1200 Intel ATX Motherboard - اللوحة الأم

Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
QAR 729.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
Wishlist
  • Description



Description:

Supported CPU
CPU Socket Type  LGA 1200
CPU Type Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors*
* Refer to www.asus.com for CPU support list.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset  Intel H470
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic:
1 x DisplayPort 1.4**
1 x HDMITM 1.4b
* Graphics specifications may vary between CPU types.
** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory*
* For 10th Gen Intel processors, only Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 3.0 x16 Intel 10th Gen Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
Intel H470 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
PCI Express x1 4 x PCIe 3.0 x1 slots
Other Slots M.2 slot (Key E) (Wi-Fi module is sold separately)
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports SATA & PCIe 3.0 x2 mode)*
* When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset  Realtek ALC887
Audio Channels  7.1 Channels
* A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)*
1 x DisplayPort
1 x HDMI port
1 x Realtek RTL8111H 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
* USB_E1, USB_E2, USB_E3 & USB_E4 share bandwith.
Internal I/O Connectors
Onboard USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Other Connectors Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
1 x AURA Addressable Gen 2 header
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Physical Spec
Form Factor ATX
LED Lighting RGB
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Features
Features Multi-GPU Support:
Supports AMD CrossFireX Technology

Special Features:
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
- Aluminum heatsink design
AURA Sync
- Standard RGB header
- Addressable Gen 2 RGB header

Software Features:
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
AI Charger
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS:
128MB Flash ROM, UEFI AMI BIOS

Manageability:
WOL by PME, PXE

Operating System:
Windows 10 - 64-bit
Packaging
Package Contents Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual
