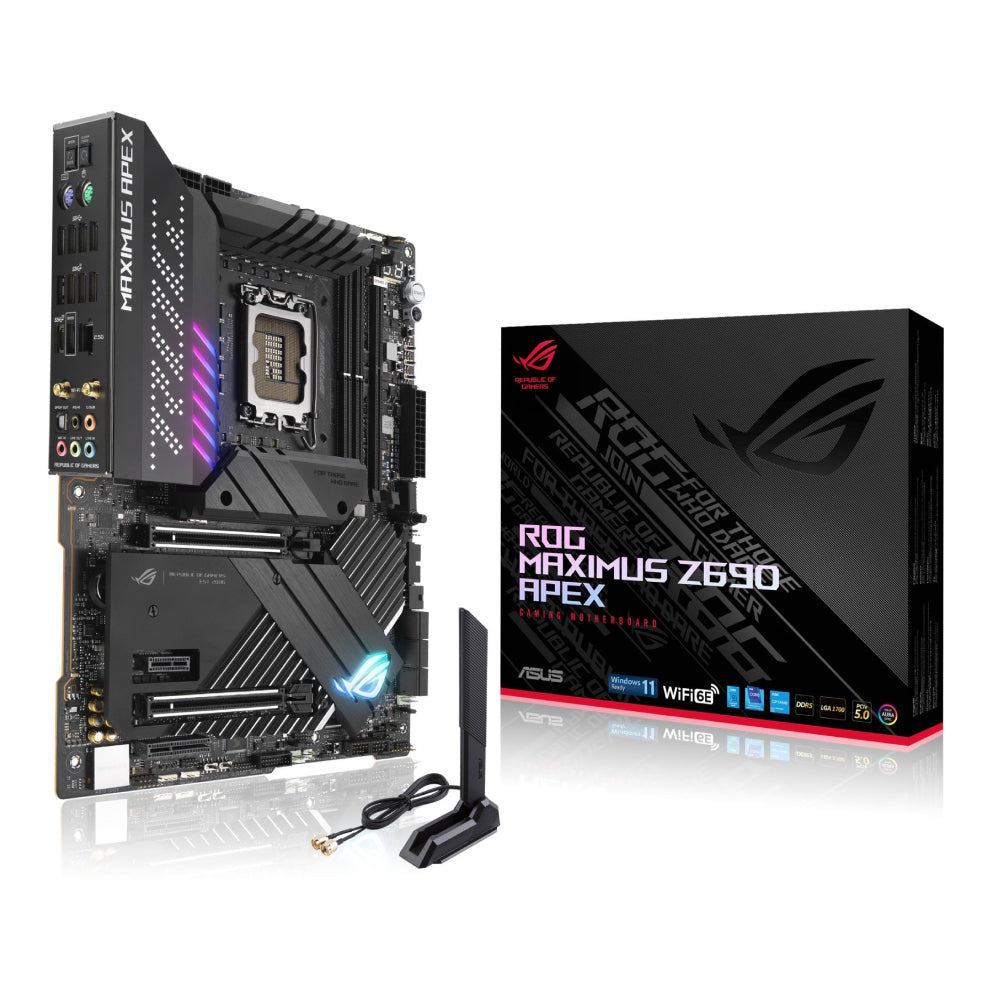

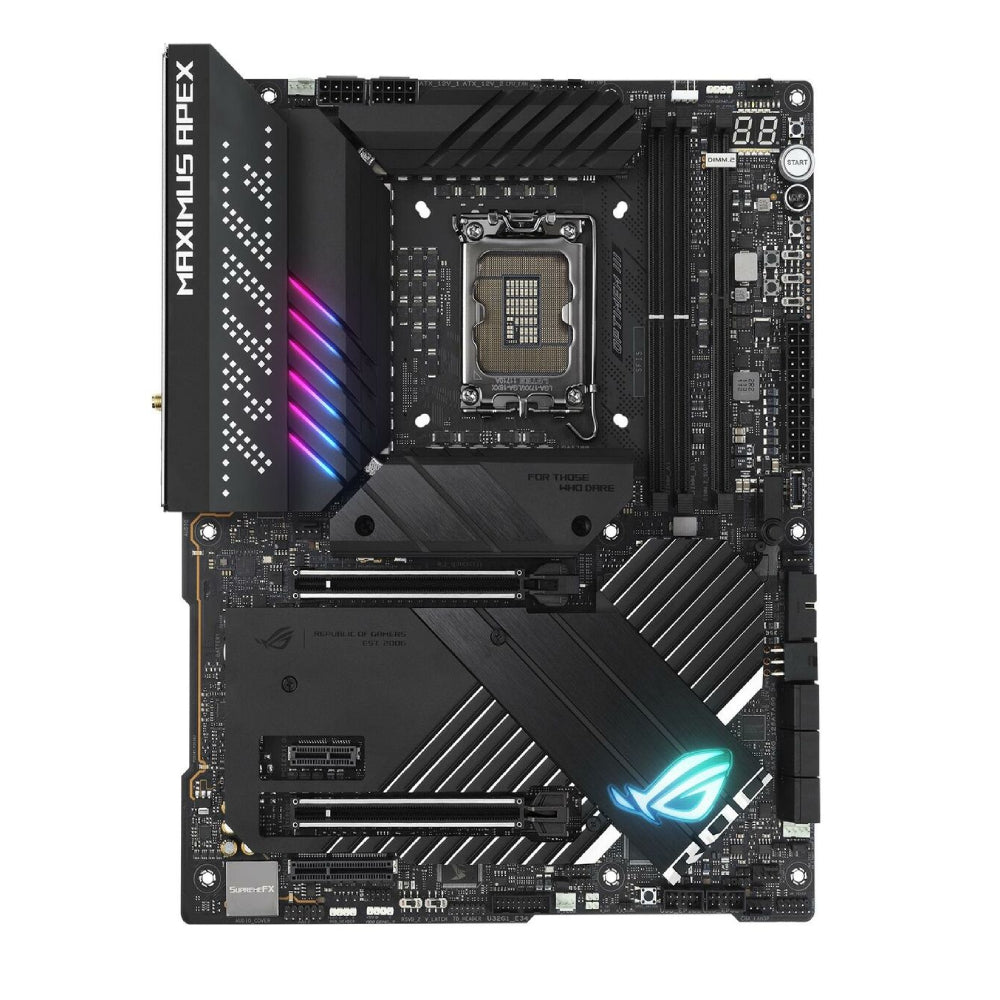

Asus ROG Maximus Z690 APEX Intel Z690 LGA 1700 ATX Gaming Motherboard - اللوحة الأم

Available: Out of Stock
QAR 3,349.00

Description:

Intel® Z690 ATX motherboard with 24+0 power stages, DDR5, Five M.2, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ Support, PCIe® 5.0, Onboard Wi-Fi 6E and Aura Sync RGB lighting

  • Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
  • Robust Power Solution: 24+0 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
  • Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, dual M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone
  • High Performance Networking: Onboard Wi-Fi 6E, Intel® 2.5Gb Ethernet, and ASUS LANGuard.
  • Fastest Gaming Connectivity: PCIe® 5.0, PCIE 5.0 M.2 card with Gen 5 M.2, USB 3.2 Gen 2x2 front-panel connector
  • Industry Leading Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier for high-fidelity audio
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
  • DIY Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, V-Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot and ROG graphics card holder

SPECIFICATIONS

Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Y
Supported memory clock speeds 6600,4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum internal memory 64 GB
Unbuffered memory Y
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,PCI Express 3.0,PCI Express 4.0,PCI Express 5.0,SATA III
Number of storage drives supported 11
RAID support Y
RAID levels 0,1,5,10
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 6
Front panel audio connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
Number of chassis fan connectors 3
EPS power connector (8-pin) Y
12V power connector Y
RGB LED pin header Y
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5
USB 3.2 Gen 2x2 Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 2
Headphone outputs 5
Microphone in Y
S/PDIF out port Y
WiFi-AP antenna jack 1
USB connector type USB Type-A, USB Type-C
Network
Ethernet LAN Y
Ethernet interface type 2.5 Gigabit Ethernet
Wake-on-LAN ready Y
Wi-Fi Y
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
Bluetooth Y
Bluetooth version 5.2
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family Intel
Motherboard chipset Intel Z690
Audio chip Realtek ALC4080
Audio output channels 7.1 channels
Windows operating systems supported Windows 10 x64,Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x4 slots 1
PCI Express x16 (Gen 5.x) slots 2
Number of M.2 (M) slots 4
BIOS
BIOS type UEFI AMI
BIOS memory size 512 Mbit
Clear CMOS button Y
Weight & dimensions
Width 305 mm
Depth 244 mm
Packaging content
Cables included SATA
Drivers included Y
