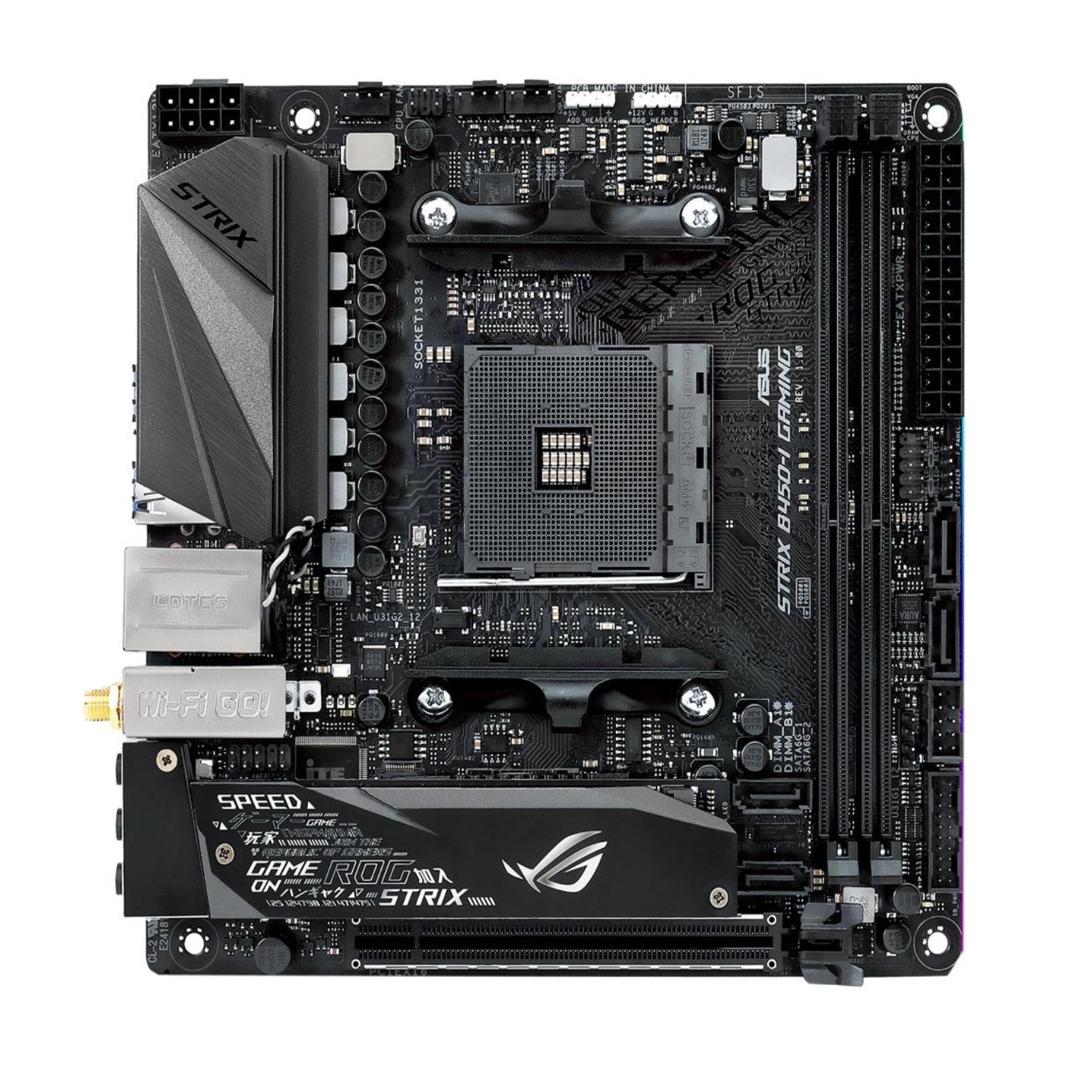

Featuring an innovative riser card that frees up real estate by elevating onboard audio and M.2 storage above the board, the ROG Strix B450-I Gaming packs the complete arsenal of ROG enhancements into the diminutive mini-ITX form factor. With intelligent overclocking and cooling, support for high-performance memory, all the latest connectivity options, and a host of firmware and software utilities that enhance your experience, the ROG Strix B450-I Gaming is a compact gaming powerhouse.
Solid Hardware Specs & For Gaming and more
Ripe for cooling with air or liquid, the ROG Strix B450-I Gaming gives you the flexibility to pair any Ryzen CPU and graphics card into a suitable chassis without worrying about thermals. And with all the latest tech onboard, there's less clutter in and around your build, leaving more space for accompanying hardware, gaming gear, and peripherals.
Design, Customization & Setup
Neat design touches, customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with the ROG Strix B450-I wonderfully easy.
Tune your rig the way you want
Whether it's overclocking, cooling, assigning network priorities, or tuning audio characteristics, the ROG Strix B450-I Gaming has the firmware options and software utilities to tailor your rig's performance for any type of gaming environment.
The Power of AMD
AM4 socket for AMD Ryzen™ 2nd Generation / Ryzen™ with Radeon™ Vega Graphics / Ryzen™ 1st Generation Processors
The AMD Ryzen™ processor is based on the innovative Zen core architecture and features up to eight cores and Radeon™ Vega integrated graphics. Together with dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes, these AMD AM4-socket processors deliver superb computing performance.
AMD B450 chipset
The AMD B450 chipset delivers high performance and flexibility with the latest AMD AM4-socket Ryzen™ processors. It also offers AMD StoreMI storage acceleration technology and provides two 10Gbps USB 3.1 Gen2 ports, two USB 3.1 Gen1 ports, and four 6Gbps SATA ports for faster data retrieval.
Powered by 2nd generation AMD Ryzen AM4 processors to maximize connectivity and speed with dual NVMe M.2, USB 3.1 Gen2, 802.11ac WiFi, gigabit LAN, and up to 32GB of DDR4 (3600 MHz).
5-Way Optimization with Auto-Tuning and Fan Xpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling.
Aura Sync RGB lighting plus 2 additional RGB headers provides a nearly endless spectrum of colours with the ability to synchronize effects across an ever-expanding ecosystem of enabled products
M.2 audio combo card raises M.2 drives and SupremeFX audio circuitry to minimize lateral interference - Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)
AMD B450 chipset:
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset:
2 x USB 2.0 port(s) (2 at mid-board)
ROG Exclusive Features
ROG RAMCache II
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- ESD Guards on LAN, Audio,and USB ports
ASUS TPU :
- Auto Tuning
ASUS EPU :
- Aura Lighting Control
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS Grid
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- featuring system performance tuning for selected applications
Back I/O Ports
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (red)Type-A,
4 x USB 3.1 Gen 1 (blue) ,
3 x LED-illuminated audio jacks
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x Aura RGB Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
