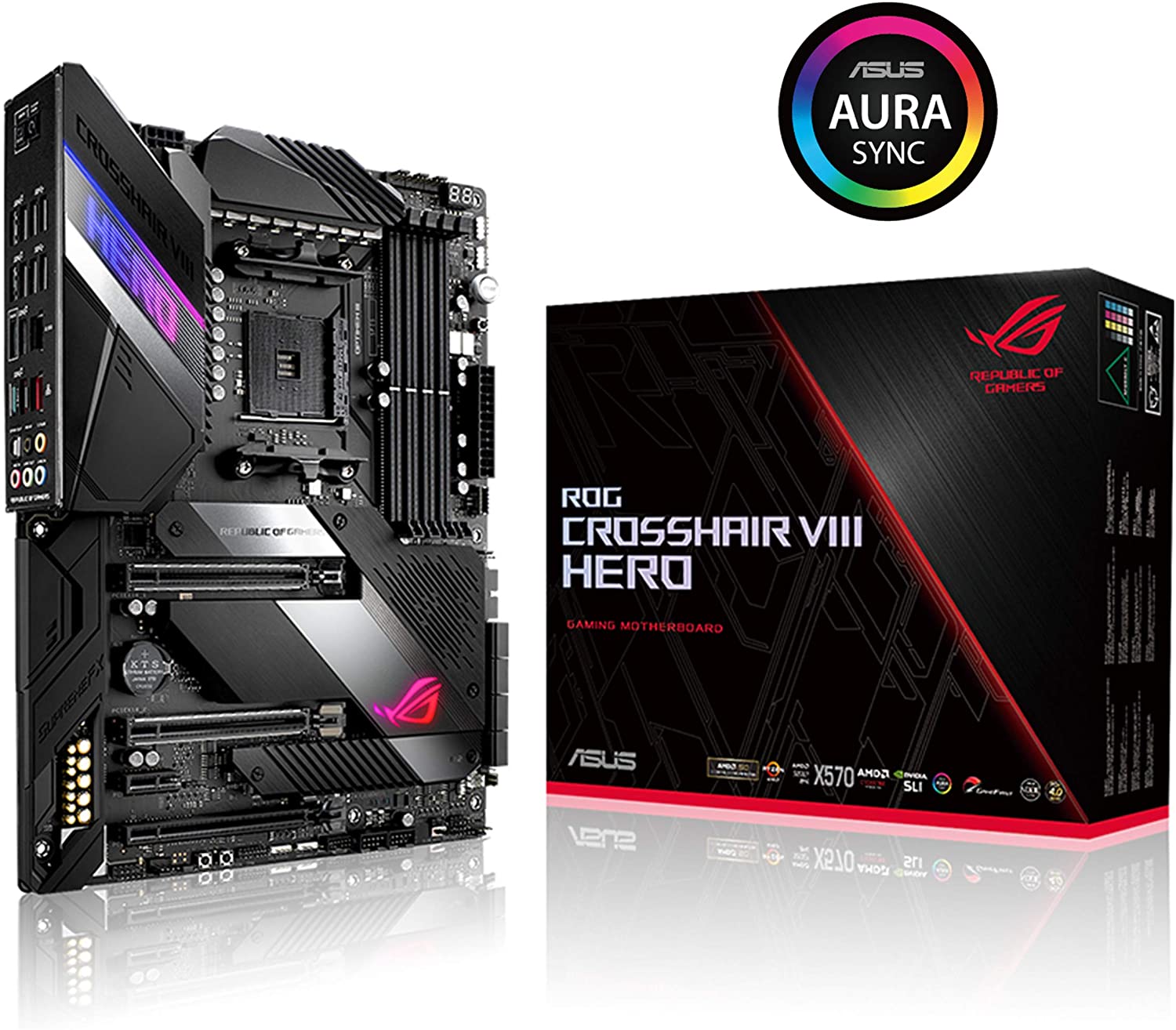

Asus ROG X570 Crosshair VIII Hero Motherboard - Store 974 | ستور ٩٧٤
Asus ROG X570 Crosshair VIII Hero Motherboard - Store 974 | ستور ٩٧٤
Visit Asus Store

Asus ROG X570 Crosshair VIII Hero Motherboard - اللوحة الأم

Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
Wishlist
  • Description

Description:

Supported CPU
CPU Socket Type  AM4
CPU Type BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.
Chipsets
Chipset  AMD X570
Memory
Number of Memory Slots 4×288pin
Memory Standard 3rd Gen AMD Ryzen Processors
DDR4 4800(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen Processors
DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
DDR4 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 3rd Gen AMD Ryzen Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)

AMD X570 chipset
1 x PCIe 4.0 x16
PCI Express x1 1 x PCIe 4.0 x1
Storage Devices
SATA 6Gb/s  8 x SATA 6Gb/s
M.2 3rd Gen AMD Ryzen Processors:
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)

AMD X570 chipset:
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
SATA RAID 0/1/10
Onboard Audio
Audio Chipset  ROG SupremeFX High Definition Audio CODEC
Audio Channels  8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
Onboard LAN
LAN Chipset Realtek RTL8125-CG
Second LAN Chipset Intel I211-AT
Max LAN Speed 10/100/1000/2500Mbps + 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x Anti-surge 2.5G LAN (RJ45) port
Anti-surge LAN (RJ45) port
5 x Gold-plated audio jacks
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
8 x USB 3.2 Gen 2 (up to 10Gbps) ports
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors 2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x TPM connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 4-pin EATX 12V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
Features
Features Multi-GPU Support:
3rd and 2nd Gen AMD Ryzen Processors
Supports NVIDIA 3-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Supports AMD 2-Way CrossFireX Technology

ROG Exclusive Features:
Extreme Engine Digi+:
- IR3555 PoweIRstage
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit:
- OptiMem III
- Safe Boot button
- Slow Mode
- LN2 Mode
Extreme Tweaker
ROG Unique Pre-mounted I/O Shield
ROG Exclusive Software
- Sonic Studio III + Sonic Studio Virtual Mixer
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Radar III

Special Features:
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
AURA:
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features:
- USB BIOS Flashback
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- ASUS NODE: hardware control interface
- ASUS EZ Flash 3
- ASUS C.P.R. (CPU Parameter Recall)
- Clear CMOS Button
- Reset Button
- Start Button
- ReTry button
ASUS Q-Design:
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

BIOS:
256MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Manageability:
WOL, PXE

Operating System:
Windows 10 64-bit
Packaging
Package Contents Accessories:
User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG big sticker
1 x Q-Connector
1 x Extension Cable for RGB strips (80cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)
1 x ROG Thank you card
