Gigabyte Z690M DS3H - DDR4 LGA 1700 Intel Motherboard - اللوحة الأم

Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
Wishlist
  • Description

Description:

CPU

 LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

Chipset

 Intel® Z690 Express Chipset

Memory

 Support for DDR4 5333(O.C.)/ 3200 MHz memory modules



 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
  1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Audio

 Realtek® Audio CODEC



 High Definition Audio
  2/4/5.1/7.1-channel

LAN

 Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

 1 x PCI Express x16 slot, running at x16
  2 x PCI Express x1 slots

Storage Interface

CPU:
  1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  4 x SATA 6Gb/s connectors
  Support for RAID 0, RAID 1, RAID 5, and RAID 10
  Intel® Optane™ Memory Ready

USB

Chipset:
  1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  2 x USB 2.0/1.1 ports on the back panel
  Chipset+2 USB 2.0 Hubs:
  4 x USB 2.0/1.1 ports available through the internal USB headers

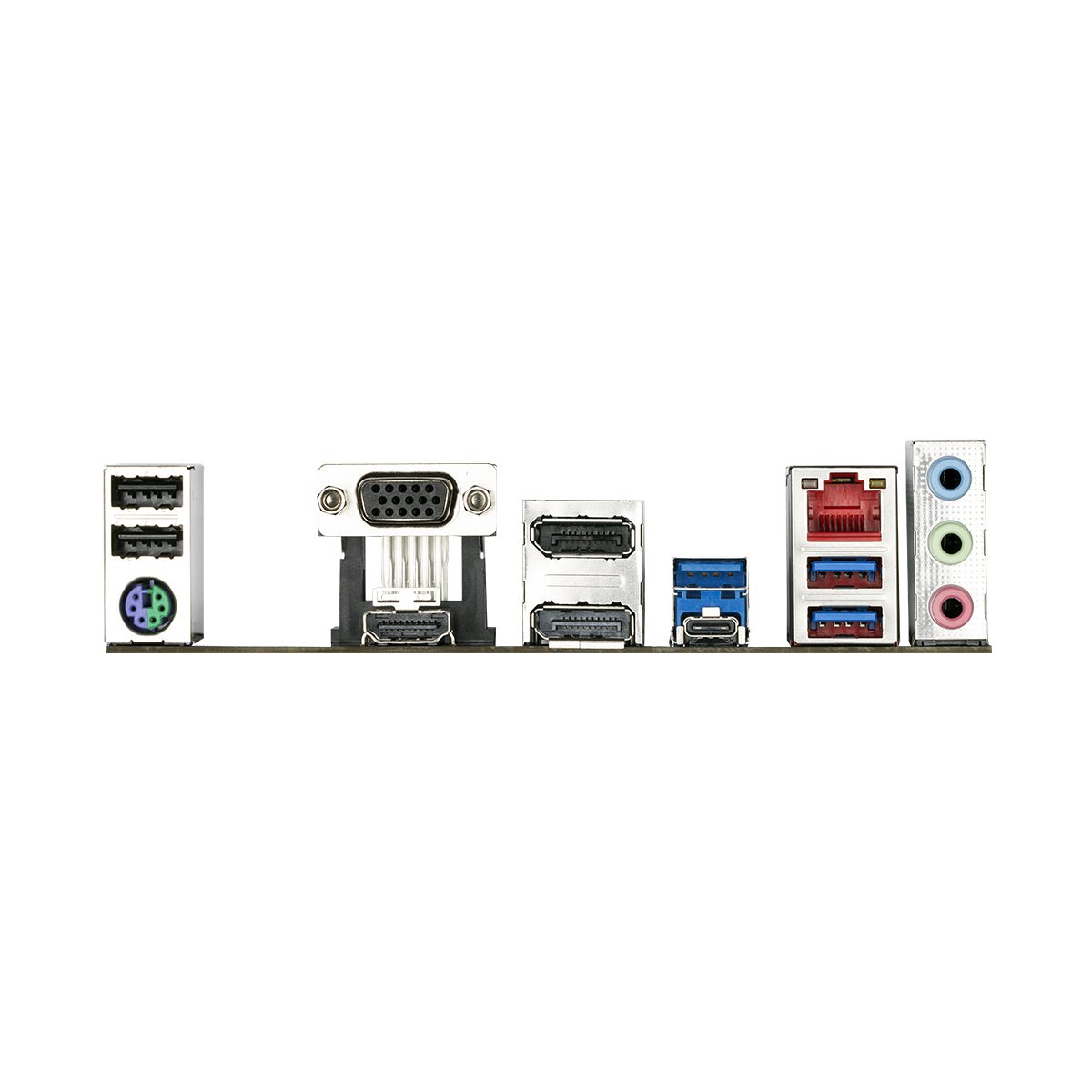

Back Panel Connectors

 2 x USB 2.0/1.1 ports



 1 x PS/2 keyboard/mouse port
  1 x D-Sub port
  1 x HDMI 2.0 port
  2 x DisplayPort
  3 x USB 3.2 Gen 1 ports
  1 x USB Type-C® port, with USB 3.2 Gen 2 support
  1 x RJ-45 port
  3 x audio jacks

Form Factor

 Micro ATX Form Factor; 24.4cm x 24.4cm
