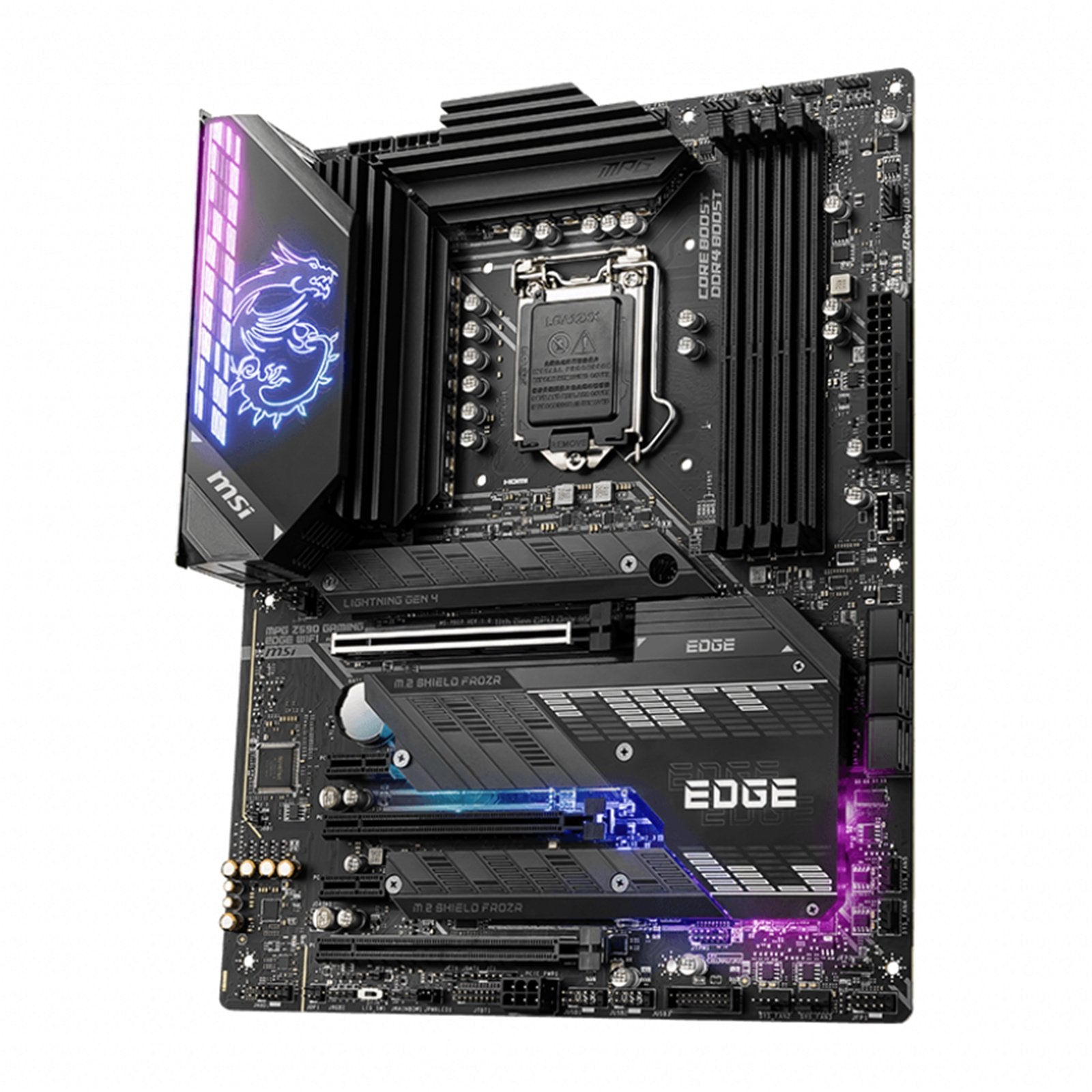

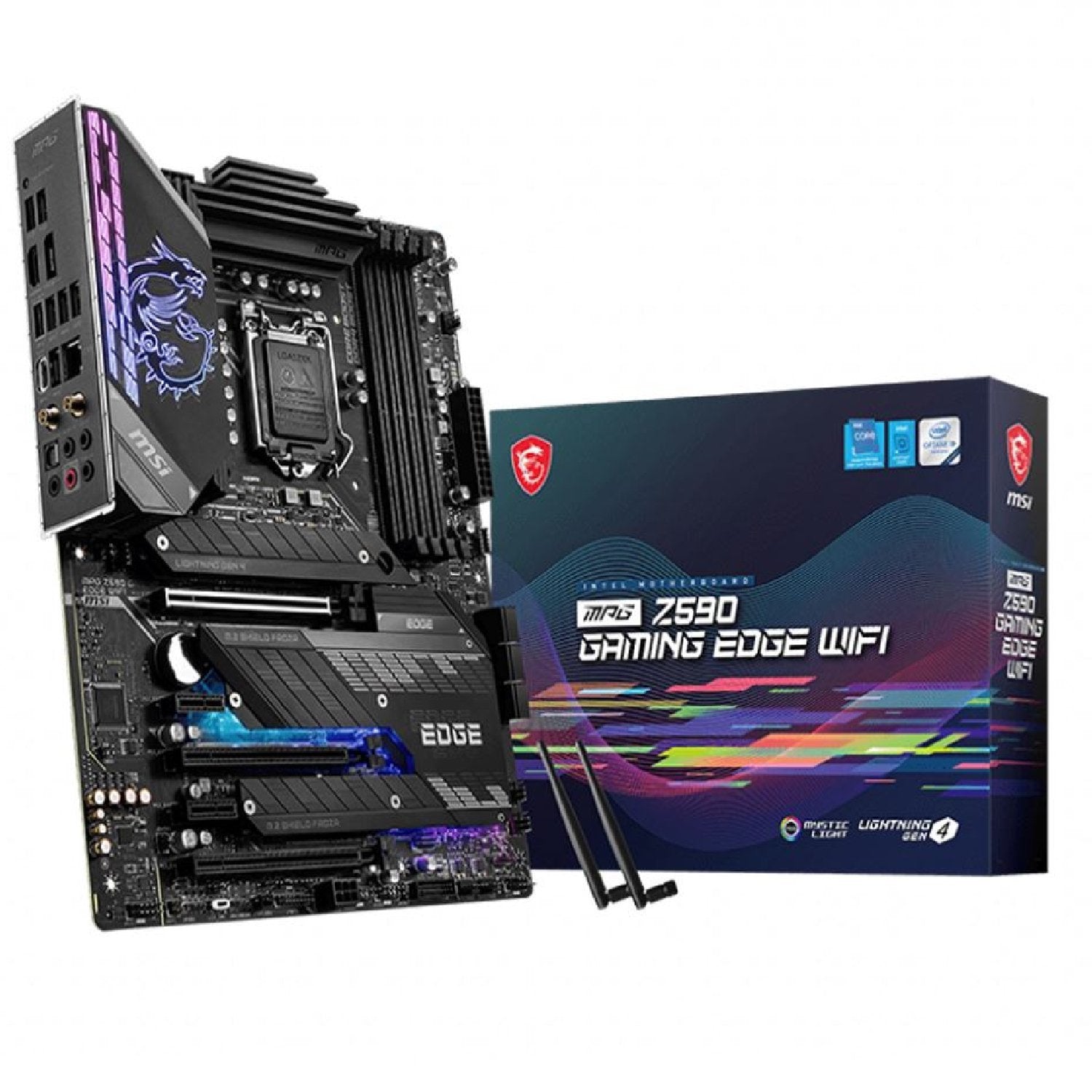

Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
M.2 SHIELD FROZR
World's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
AUTODETECT DC OR PWM MODE WITH HYSTERESIS
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
DIY 2.0 - INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1200
Intel® Z590 Chipset
4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
- 1DPC 1R Max speed up to 5333 MHz
- 1DPC 2R Max speed up to 4700+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
3x PCIe x16 slots
- Support x16/x4/x4
- PCI_E1 (From CPU)
- Supports up to PCIe 4.0 for 11th Gen Intel® CPU
- Supports up to PCIe 3.0 for 10th Gen Intel® CPU
- PCI_E3 & PCI_E5 (From Z590 Chipset)
- Support up to PCIe 3.0
2x PCIe 3.0 x1 slots (From Z590 Chipset)
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
